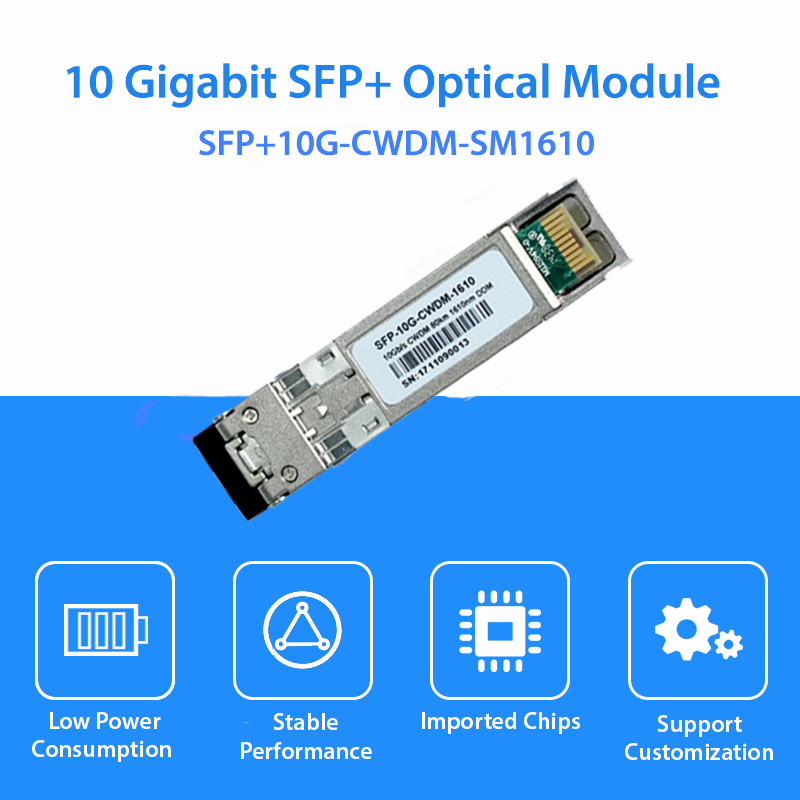

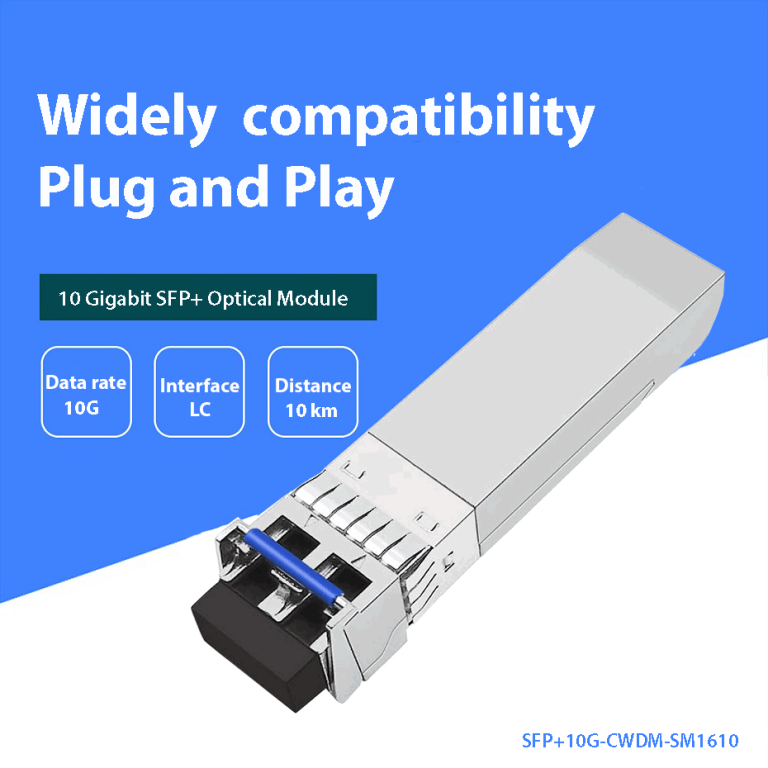

SFP+10G-CWDM-SM1610
Topic:
10G Gigabit optical module SFP+ CWDM Single Mode 10KM dual LC interface
Description:
CWDM SFP+ optical module can meet the application of Fibre Channel 8.5G and Ethernet 10G in accordance with ANSI T11 protocol and retains the basic electro-optical and photoelectric conversion functions, reduces the SerDes, CDR, EDC, MAC and other signal control functions in the original XFP design, thereby simplifying the design of 10G optical modules and reducing power consumption.
Feature:
• Hot-swappable SFP+ package/dual LC interface
• Reach 11.1gbps data link, support 80km transmission distance
• Digital diagnosis function optional/metal shell package to reduce electromagnetic interference
• 1330nm DFB laser emission, 1270nm reception
• Follow the SFP+ MSA protocol, comply with SDH/SONET transmission standards, comply with SFF-8472, comply with RoHS
• Uncooled CWDM DFB laser and PIN receiver
• 3.3V single power supply, low power consumption
• Digital diagnostic monitoring: internal calibration or external calibration
Specification:
Transmission rate
10G
Package type
SFP+
Transmission distance
10 KM
Transmission medium
Single mode fiber
Transmission wavelength
1610nm
Digital diagnosis
stand by
Interface Type
Dual LC interface
Operating temperature
0~70℃
